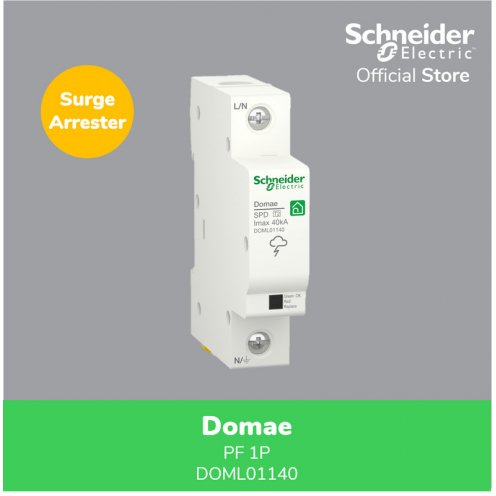

"Surge Arrester (SPD) Domae adalah perangkat listrik
yang melindungi peralatan elektronik terhadap bahaya induksi petir."

[Spesifikasi]:

1.surge arrester class type: Type 2
2. surge arrester technology: MOV + GDT
3. [Ue] rated operational voltage: 230 V +/- 10 % AC 50/60 Hz
4. [In] nominal discharge current: 15 kA
5. [Imax] maximum discharge current: 40 kA
6. [Uc] maximum continuous operating voltage: Common mode: 340 V L/PE
Common mode: 260 V N/PE
Differential mode: 340 V L/N
7. maximum [Up] voltage protection level: <1.5 kV type 2
8. [Ut] temporary overvoltage:
337 V L/N 5 s withstand
442 V L/PE 5 s withstand
1200 V N/PE 200 ms withstand
1453 V L/PE 200 ms withstand
9. disconnector device type: Circuit breaker Domae MCB 20 A curve C
10. [Isccr] short-circuit current rating: 6 kA
11. local signalling:
Operating state: flag (green)
Fault indication: flag (red)
12. mounting mode: Clip-on
13. mounting support: DIN rail
14. 9 mm pitches: 2
15. height: 81 mm
16. width: 18 mm
17. depth: 63 mm
